A master home inspector’s breakdown of party walls in Olathe, KS duplexes, with fire safety context and what first-time buyers need to know

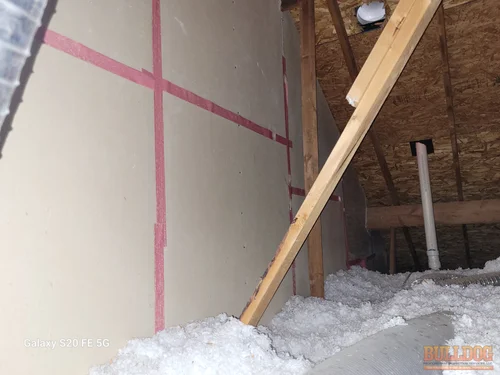

During the roof and attic inspection of a vacant 27-year-old 1.5-story duplex in the Bradford Trails subdivision of Olathe, KS, a couple of months ago, I found something most homebuyers have never think to ask about: a party wall.
A party wall is the shared wall between two units in a duplex or townhouse. It’s not just drywall. It’s an engineered fire-separation wall assembly designed to slow the spread of fire between units, giving occupants on both sides more time to get out safely.
That standard didn’t always exist.
Through most of the 20th century, the walls separating units in multi-family homes were built mainly for sound control and basic structural separation. That changed in the 1990s, when model building codes started requiring true fire-rated assemblies between units. Structures built during that period in Johnson County reflect some of the earliest applications of what we now call “area separation wall” technology.
For a first-time buyer walking into a 27-year-old duplex like this, it’s good to know what you’re buying, so you not only stay safe, but it’ll be one less thing to worry about when you sell.
Here are 5 questions trending questions homeowners and buyers in Olathe, KS are asking about party walls, fire-rated assemblies, and what it all means for the home you’re about to purchase.
Does a firewall in a duplex have to go all the way to the roof?
The Quick Answer: In most cases, yes. A fire separation wall in a duplex should extend continuously from the foundation to the roof deck, with no gaps. Depending on the construction method, that can mean tight contact with the roof decking or the use of a parapet wall above the roofline. Either way, the goal is to prevent fire from creeping around the top of the wall and spreading into the adjacent unit’s attic.
The “Roof Decking Tight” Requirement
The most common approach in 1990s-era duplex construction is what’s sometimes called a “roof decking tight” assembly.
That means the fire-rated wall extends upward until it contacts the underside of the roof sheathing, leaving no gap for fire or hot gases to pass through. In a 1.5-story duplex with a sloped attic, that can be tricky to achieve because the roofline changes direction.
When it’s done right, it creates a continuous vertical barrier that separates the two attic spaces entirely.
Parapet Walls vs. Fire-Retardant Treated (FRT) Plywood
Another approach uses a parapet wall that extends above the roofline.
A parapet creates a physical barrier that prevents fire from jumping over the top of the separation wall. It’s more common in commercial construction, but it does appear in some multi-family residential buildings.
Where a parapet isn’t used, fire-retardant treated (FRT) plywood is sometimes specified for the roof decking directly above the separation wall. FRT plywood is pressure-treated with chemicals that slow ignition and flame spread, providing a layer of protection at the most vulnerable point of the assembly.
The Role of Fireblocking in the 1.5-Story Attic Slope
In a 1.5-story home, the attic isn’t one open area. The sloped ceiling creates a series of cavities along the knee walls and rafter bays that can act like chimneys if there’s nothing interrupting them.
Fireblocking is material installed horizontally inside those cavities to slow the travel of fire and hot gases. It’s not the same as a full fire-rated assembly, but it plays an important supporting role in a 1.5-story duplex where the geometry makes continuous separation more complicated.
Draft Stopping vs. Fire Separation in Olathe Residential Code
These two terms are often confused, and they’re not the same thing.
Draft stops the spread of smoke and gases through concealed attic spaces by breaking larger areas into smaller sections.
Fire separation is a more demanding requirement that involves:
- Rated assemblies
- Specific approved materials
- Continuous coverage from the foundation to the roof deck
In a 27-year-old duplex in Olathe, KS, you might find both systems in place, or you might find that only one was installed. Knowing the difference helps you ask better questions during an inspection.
What is the difference between a fire partition and a firewall in a house?
The Quick Answer: A fire partition is a lighter-duty interior wall designed to slow the spread of fire within a single building, while a firewall is a more robust, structurally independent barrier designed to stop fire completely from crossing between two separate units or structures. In a duplex, the party wall is typically classified as a firewall, which comes with stricter material, continuity, and structural requirements than a standard fire partition.
Structural Independence: The “Collapse Rule”
The biggest difference between these two assemblies isn’t the materials. It’s how the wall behaves when things go wrong.
A true firewall is designed to stand on its own even if the structure on one side collapses. That’s sometimes called the “collapse rule.” The idea is that if a fire destroys one unit completely, the firewall should remain standing long enough to protect the adjacent unit.
A fire partition doesn’t carry that same requirement. It’s built to resist fire, but it relies on the surrounding structure for support.
Hourly Ratings: Understanding 1-Hour vs. 2-Hour Assemblies
Fire-rated assemblies are measured in hours, which represents how long a wall can resist fire exposure under standardized testing conditions.
Fire partitions in residential construction are usually rated at one hour. A firewall in a duplex is typically rated at 2 hours, meaning it should hold back fire roughly twice as long before failing.
In a 27-year-old home in Olathe, KS, the hourly rate for the party wall depends on which code was in effect when the home was built and how closely the builder followed it.
Material Density: Type X Gypsum Board vs. Fire-Rated Drywall
Not all fire-rated wall materials are created equal when it comes to separation assemblies.
Fire-rated drywall is the most common material used in residential construction for basic fire resistance.
Type X gypsum board is a step up, using glass fiber reinforcement in its core to hold together longer under heat. In party wall assemblies, shaftliner panels, which are a form of Type X gypsum board, are typically specified because of their higher density and ability to achieve a two-hour rating.
The two most common materials used in fire-rated assemblies between duplex units are:
- Fire-rated drywall (typically 5/8 inch thick, used in lighter-duty applications)
- Type X gypsum board shaftliner panels (typically 1 inch thick, used in area separation wall systems)
Shaftliner systems are more common in townhouse and duplex construction where a true two-hour fire separation wall is required.
Continuous vs. Discontinuous Barriers in Duplex Design
A fire-rated assembly is only as good as its weakest point.
A continuous barrier runs uninterrupted from the foundation to the roof with no gaps, holes, or unsealed penetrations. A discontinuous barrier has breaks, whether due to improper installation, aging, or modifications made after the original construction.
In older duplexes, discontinuous barriers are worth noting during an inspection, particularly around plumbing, electrical, and HVAC penetrations, where trades may have cut through the wall without proper fire-rated repairs.
Can I put plumbing or electrical wires in a party wall?
The Quick Answer: It depends on the type of penetration and how it’s handled. Electrical wiring can typically pass through a fire separation wall if the penetration is properly sealed with fire-rated caulk or an intumescent device. Plumbing is more restricted, particularly combustible plastic drain lines, which generally shouldn’t run through a fire-rated assembly. Any penetration that isn’t properly sealed can compromise the integrity of the entire wall.
Membrane Penetrations and Fire-Rated Caulking Standards
Every time a wire, pipe, or conduit passes through a fire-rated assembly, it creates what’s called a membrane penetration.
That opening needs to be sealed with an approved fire-rated material to restore the wall’s rating. The most common solution is intumescent caulk, which expands rapidly when exposed to heat and seals the gap before fire can pass through. Without it, even a small hole can significantly shorten the time the wall holds up.
The 24-Inch Rule: Restricting Back-to-Back Electrical Boxes
This is one of the more specific requirements that come up in duplex inspections.
Electrical boxes installed on opposite sides of a fire separation wall shouldn’t be placed back-to-back. The typical requirement is that they should be offset by at least 24 inches horizontally. The reasoning is straightforward: two boxes directly opposite each other create a thin spot in the assembly, where fire resistance is reduced on both sides simultaneously.
In older construction, back-to-back boxes aren’t uncommon. It’s worth noting during an inspection, even if it doesn’t rise to the level of a code violation under the rules in effect at the time the home was built.
Prohibited Combustible Waste Lines in Fire-Rated Cavities
This is where plumbing gets more complicated.
Metal supply lines can usually pass through a fire-rated assembly with proper sealing. Combustible plastic drain lines, like PVC or ABS pipe, are a different story. These materials can melt and burn, which means running them through a fire separation wall can create a pathway for fire rather than stopping it.
In a 27-year-old duplex in Olathe, KS, the plumbing materials used will depend on what was standard practice at the time of construction. If plastic waste lines are present in the party wall cavity, a qualified inspector should note them.
Proper Use of Intumescent Putty Pads for Sound and Fire
Intumescent putty pads serve double duty in a fire separation wall.
They’re wrapped around electrical boxes to seal the cavity behind them, which helps with both fire resistance and sound transmission. When heat reaches the pad, it expands and compresses, closing off the box cavity before fire can use it as a passage. They’re a relatively simple product, but they’re an important part of a properly detailed fire-rated assembly.
What is a breakaway clip in a townhouse firewall?
The Quick Answer: A breakaway clip is a fastener designed to fail under extreme heat, allowing one side of a fire separation wall to collapse without pulling the other side down with it. It’s a deliberate engineering feature, not a defect. In older townhouse and duplex construction, rigid fasteners were sometimes used instead, which can undermine the wall’s ability to protect the adjacent unit during a serious fire.
Mechanical Failure by Design: Aluminum Thermal Clips
It sounds counterintuitive, but a fastener that’s supposed to let go is actually doing its job correctly.
Aluminum thermal clips are designed to hold the fire separation wall panels in place under normal conditions. When temperatures rise to a certain point during a fire, the aluminum softens and releases, allowing the panels on the burning side to fall away without destabilizing the wall on the protected side. That separation is what keeps the fire-rated assembly intact when it matters most.
Structural Integrity During a “Total Loss” Scenario
The clip system ties directly back to the collapse rule mentioned earlier.
If one unit is fully engulfed, the goal is for the firewall to remain standing on the surviving side. Breakaway clips make that possible by decoupling the two sides of the wall at the moment of maximum stress. Without them, a rigid connection between the two panel faces could transfer the structural failure from one unit to the other.
Identifying Rigid Fasteners in Older Attic Inspections
During attic inspections of older duplexes, rigid fasteners occasionally appear where thermal clips should be.
This can happen for a few reasons. The original builder may have substituted standard screws or nails during construction. Repairs or modifications made after the original build may have introduced non-compliant fasteners. Either way, a rigid connection between both faces of the wall reduces the assembly’s ability to perform as designed during a fire.
It’s not always visible from a standard attic inspection, but it’s one of the things a qualified inspector looks for in a 27-year-old duplex in Olathe, KS.
The Relationship Between the Clip and the Double-Wall System
Breakaway clips don’t work in isolation. They’re part of a larger system.
Most area-separation walls in duplex construction use a double-wall design, with two parallel rows of framing side by side with a small gap between them. The thermal clips connect the fire-rated panels to this framing, allowing controlled separation.
The key components of this system working together include:
- Double-stud or double-track framing along the party wall
- Fire-rated shaftliner or Type X panels on each face
- Aluminum thermal clips are the only connection between the panel and the framing
- Continuous coverage from the foundation to the roof deck
When all four of those elements are in place, the assembly can perform the way the code intended.
Is it okay to have a ridge vent over a fire separation wall?
The Quick Answer: It can be, but only if the ventilation system is designed in a way that doesn’t compromise the fire barrier below it. A standard ridge vent running continuously over a party wall can create a path for fire and hot gases to travel from one unit’s attic space into the other. When ridge vents are used in this location, they typically require fire-rated baffles or intumescent strips to maintain the integrity of the fire-rated assembly below.
Ventilation Continuity vs. Fire Barrier Integrity
Roof ventilation and fire separation have competing goals, and that tension is most evident at the ridge.
A ridge vent is designed to allow continuous airflow along the roof’s peak. A fire separation wall is designed to stop everything from crossing between units, including air. When those two systems meet at the same point, one can undermine the other if the details aren’t handled correctly.
In a 1.5-story duplex, the ridge sits directly above the party wall in many designs, making this a location worth careful examination during an attic inspection.
Fire-Rated Baffles and Intumescent Ridge Strips
The most common solution is to interrupt the ridge vent directly above the fire separation wall.
A fire-rated baffle or intumescent ridge strip can be installed at that point to block the passage of fire and gases while still allowing ventilation on either side. Intumescent materials expand rapidly under heat, sealing the gap before fire can use the vent opening as a travel path. It’s a relatively small detail, but it plays an important role in keeping the fire-rated assembly continuous to the roofline.
The “Four-Foot Rule” for Roof Eave and Ridge Ventilation
Some codes reference a minimum horizontal separation between ventilation openings and the fire separation wall.
The general concept is that vents, whether at the eave or the ridge, should be set back far enough from the party wall that fire can’t easily jump from one unit’s ventilation system into the other’s. In practice, this can affect how a builder designs the soffit and ridge vent layout on a duplex roof. In a 27-year-old home in Olathe, KS, the specific requirements in effect at the time of construction may differ from current standards, which is one reason attic inspections on older duplexes can be particularly informative.
Compromised Enclosures: When Attic Airflow Negates Fire Safety
A fire separation wall that’s otherwise well-built can still be undermined by an improperly vented attic.
If the two attic spaces above a duplex are connected by an unsealed ridge vent, a gap in the roofline, or an improperly blocked rafter bay, the separation wall below may not perform as intended. The attic space essentially becomes a shared airspace, and fire doesn’t need to go through the wall if it can go around it.
This is one of the reasons a thorough attic inspection on a duplex goes beyond just looking at insulation and framing. Understanding how the ventilation system interacts with the fire-rated assembly is part of evaluating the whole picture.

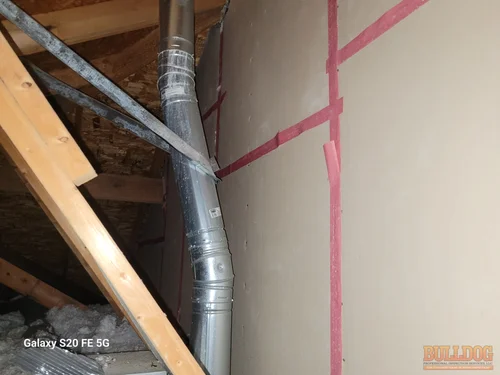

When I climbed into the attic of that vacant duplex in Bradford Trails, I wasn’t expecting the party wall to be the most interesting part of the inspection. But it was.
A 27-year-old fire separation wall in a 1.5-story duplex tells a story about how it was built, which code standards were in effect at the time, and whether the assembly still performs as designed. For a first-time buyer in Olathe, KS, that information is worth having before you sign anything.
Johnson County has a significant inventory of duplex and townhouse properties built during that 1990s code transition period. Some were built exceptionally well. Others reflect the inconsistencies that come with evolving standards. The only way to know which one you’re buying is to have it inspected by someone who knows what to look for.
If you’re buying a duplex or townhouse in the Olathe, KS area, make sure your inspector is asking the right questions about the party wall. It’s one of the most important fire safety features in the home, and it deserves more than a passing glance.
About the Author
Steve Rodriguez is a professional home inspector and the owner of Bulldog Professional Inspection Services. He performs more than 600 home inspections annually all across the KC metro area.
Based in: Raymore, MO
Service Areas: Belton, Raymore, Harrisonville, Grandview, Lee’s Summit, Blue Springs, Raytown, Independence, Liberty, Kansas City, MO, Kansas City, KS, Olathe, Leawood, Overland Park, Prairie Village, Shawnee, Lenexa
Certifications: Certified Master Inspector® (CMI). International Association of Certified Home Inspectors (InterNACHI) Certified Professional Inspector since 2004.
This article is based on a real inspection conducted in February 2026. The property address has been excluded for privacy. Cost estimates reflect Kansas City metro area pricing as of February 2026 and may vary based on specific conditions and contractor selection.
